1. Capacity of Kneader
2-20000L for your choice.
the work capacity is 60% of total capacity.
2. Application of kneader:
-- Food industry:chewing gum, bubble gum, sugar, chocolate,food gum bases,etc
-- Chemical industry:BMC/DMC, plastics, silicone rubber, pigments, carbon cellulose, aluminum silver paste, silica gel, pulp,battery paste, silicone resin,
-- Construction industry:dyes,architectural coatings, High viscosity sealant, neutral glass glue,
-- Cosmetics industry: toothpaste and other products
-- Pharmaceutical industry:pharmaceutical agent,medicines
3. Material of kneader:
Contacting part materials:stainless steel , ensure the purity and quality of products.
Other part : stainless steel , carbon steel,glass lined etc.
4. Type of kneader:
* vacuum type or pressure type or normal type.
* heating way:electric and steam heating type , and cooling is also available.
*the seal of shaft agitator is adopted with unique balance construction of vacuum box, Which owns patent.

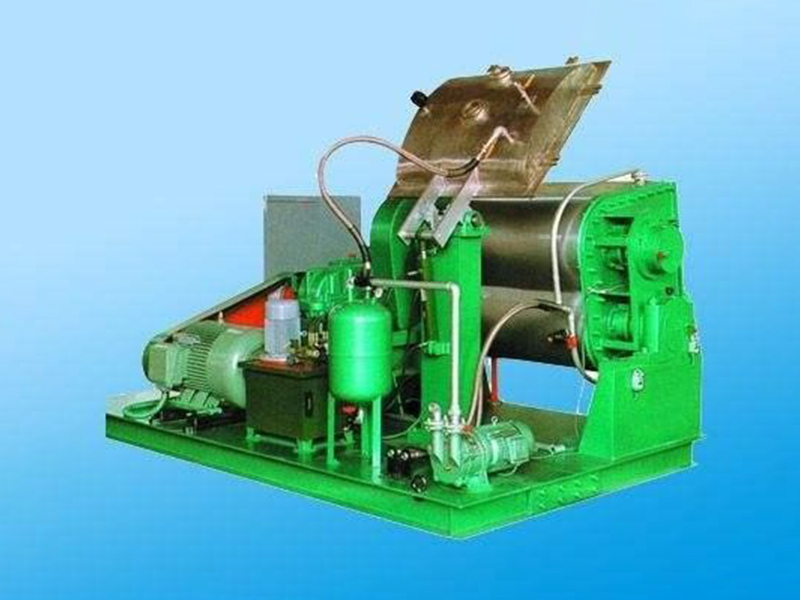

* cover controlled by hydraulic system.
5. Discharging way of kneader:

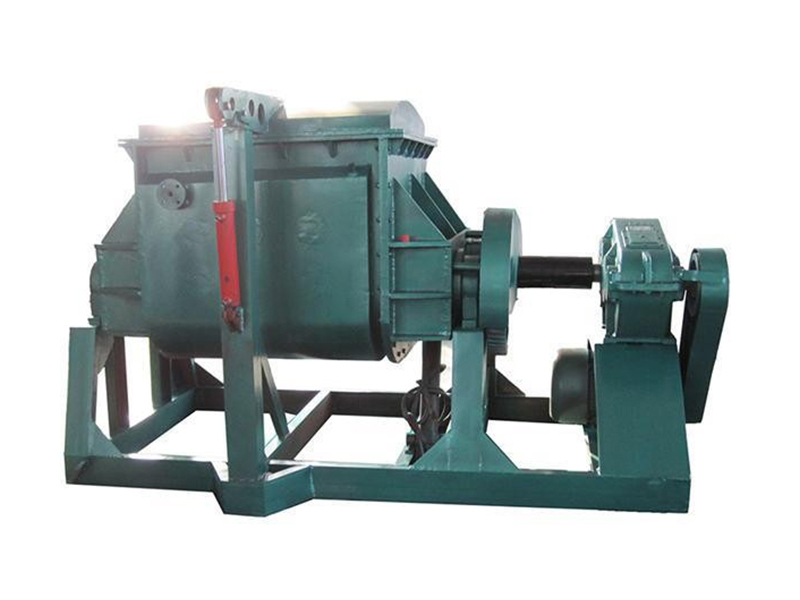

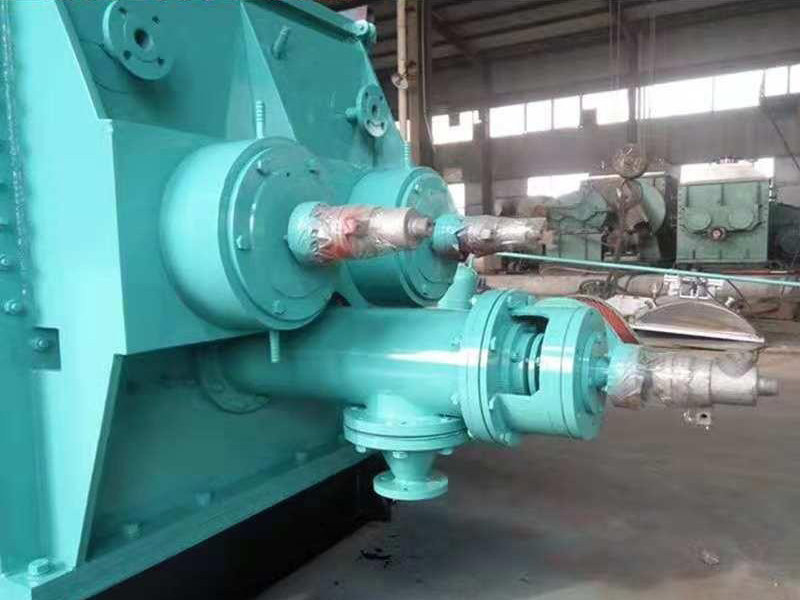

Hydraulic tilting discharge, ball valves discharge and screw extrusion discharge, etc.
6.Technical parameter
Type | NH-5 | NH-10 | NH-100 | NH-300 | NH-500 | NH-1000 | NH-1500 | NH-2000 | NH-3000 | NH-4000 | NH-5000 | ||
Volume(L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | ||
Rotation Speed (rpm) | 33 23 | 33 23 | 35 22 | 37 21 | 37 21 | 35 25 | 30 16 | 30 16 | 38 27 | 38 27 | 38 27 | ||
Motor Power(kw) | 0.75 | 1.1 | 3-7.5 | 11-30 | 15-37 | 22-90 | 22-90 | 30-110 | 30-110 | 45-110 | 55-132 | ||
Heating Methods | Steam: Pressure (MPa) | 0.3 | |||||||||||
Electric: Power (kw) | 1 | 1 | 4 | 9 | 16.2 | 27 | 32.4 | 40 | 72 | 72 | 96 | ||
Vacuum(MPa) | -0.094 (Vacuum Kneader) | ||||||||||||
Pressure(MPa) | 0.45 (Pressure Kneader) | 0.35 (Pressure Kneader) | 0.3(Pressure Kneader) | ||||||||||
Weight(kg) | 300 | 400 | 1250 | 1600 | 3000 | 4500 | 5800 | 6500 | ~11000 | ~13000 | ~21000 | ||
NOTES: | 1.The above parameters are based on the ordinary design. 2.You can choose single drive or double drive. | ||||||||||||
|
|
|
|
|

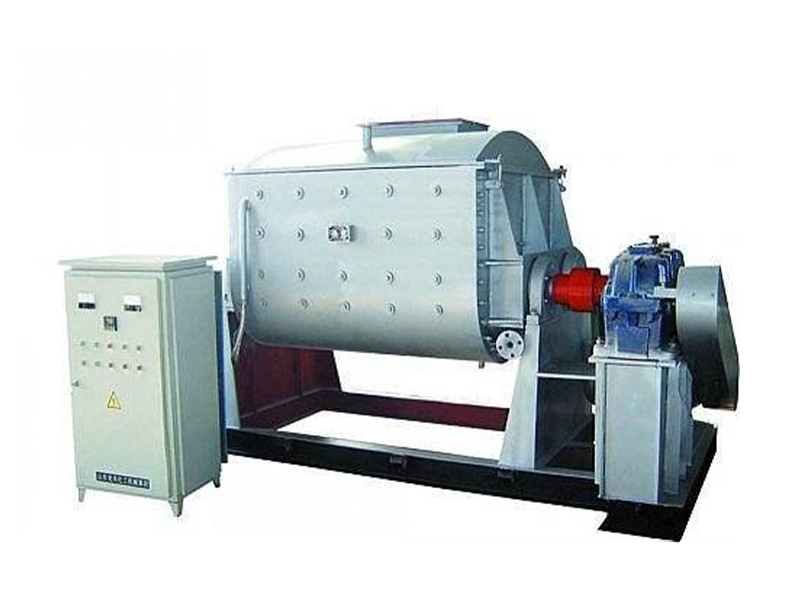

General kneader | Vacuum kneader | Screw extrusion type kneader | Hot melt adhesive kneader | Carbon kneader |
|
|
|
|
|

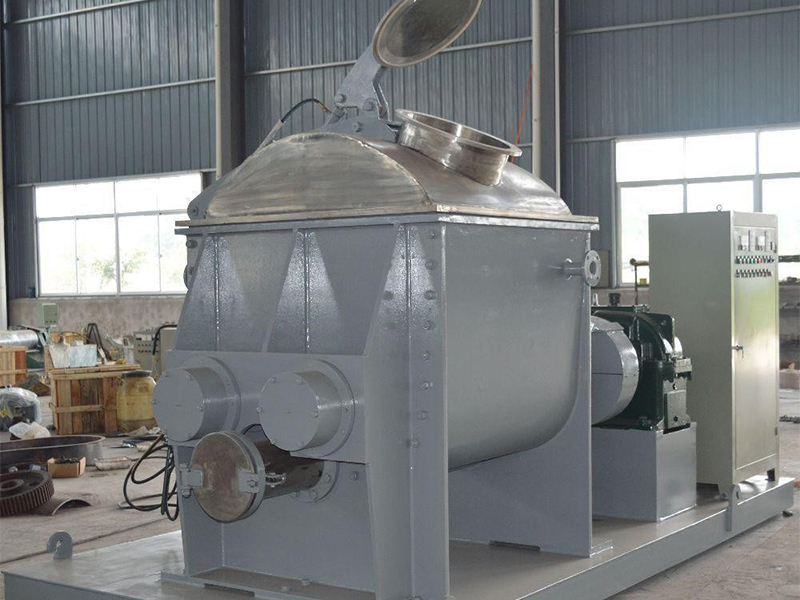

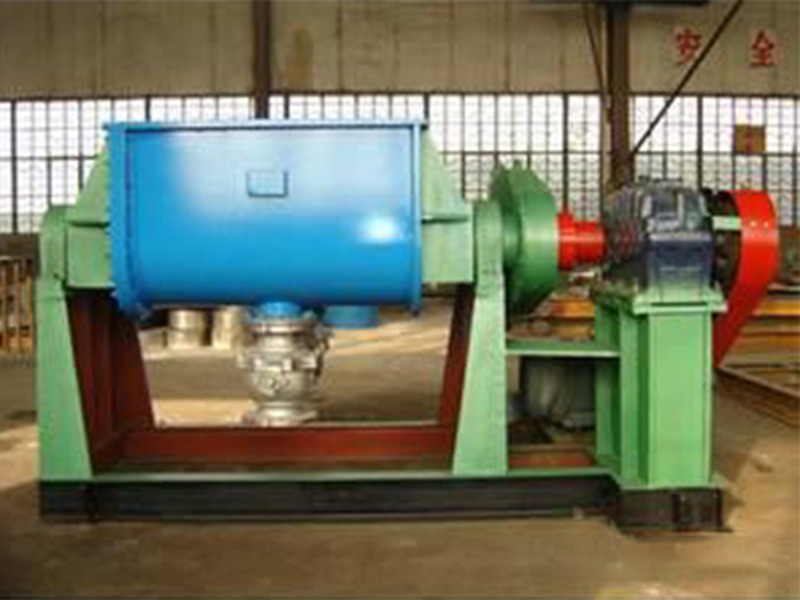

High temperature kneader | Bottom discharge kneader | Lab kneader | Heavy type kneader | Pressure kneader |
