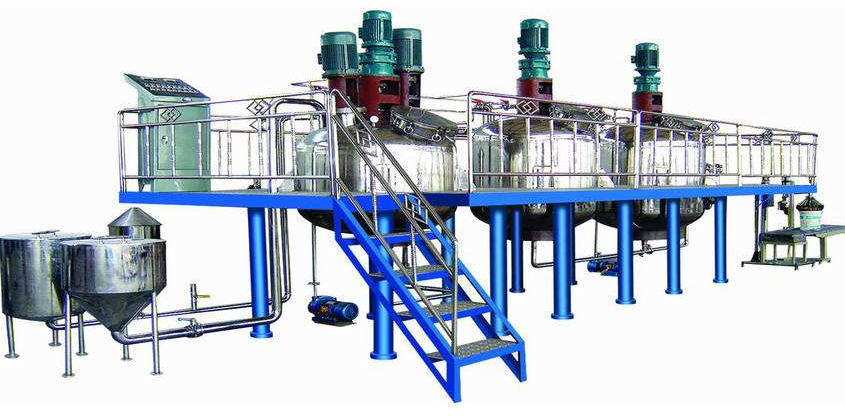

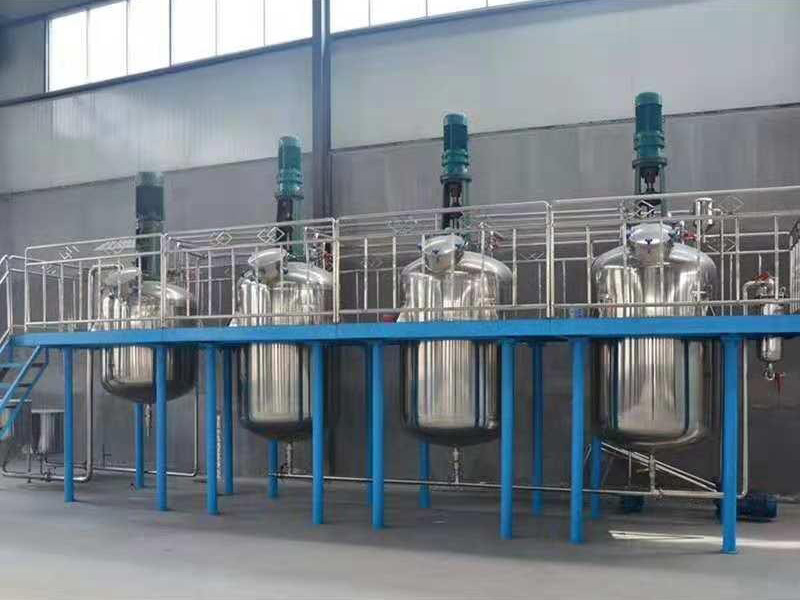

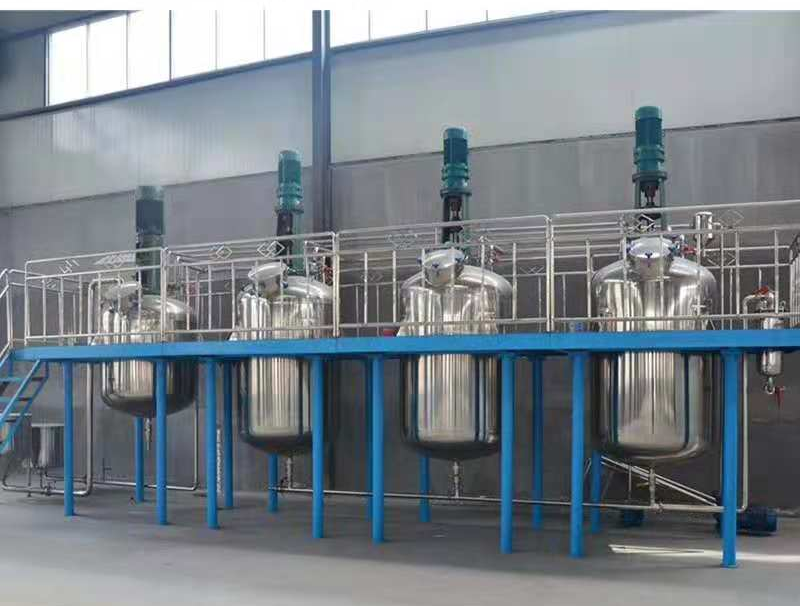

A fully automatic coating production plant is special designed and manufactured for 100T-10000T yearly capacity.It consists following main systems.

-  Raw material feeding

-  Milling and dispersing

-  Agitating and mixing

-  Filter and filling

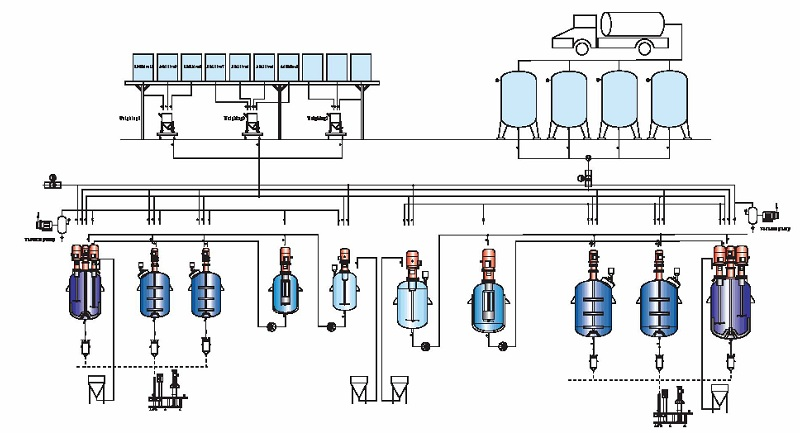

-  Pipe system

-  Working platform

Paint equipment,sucessfully introduce automatic control and PLC into coating production, with high efficiency.

Features:
1) Suitable for large scale production
2) It could provide special configuration according to different technique output
requests
3) Design yearly output: 100 - 10000MT
4) Automatic production and vacuum material absorption is adopted
5) Automatic metage, online checking, and the entire valve adopt electric control
valve, automatically controlled by computer
6) High investment and high output

Remarks:

1. The max processing capacity(customized) in the list is based on the medium water.Changes in design reserved

2. If the disperser works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection

3. We can provide appropriate design according to practical conditions and specific requirement.

Paint Production equipment as followings:

Dissolvers;     dispersers;

sand mills;      basket mills;

paint mixers and vessels;      paint filling equipment.
