1.Application:
Triple Roller Mill is ideal grinding and dispersing equipment to process high viscosity material.It can be mainly used in Oil Paint, Printing-ink, Color Paste, Plastic Paste, Cosmetic, Soap, Ceramics,Rubber etc.
2.Function: Grinding , Emulsifying, Dispersing;
3.Model: S65 ( Lab )
S150 & S260 (Medium)
S315 & S405 (Mass Production)

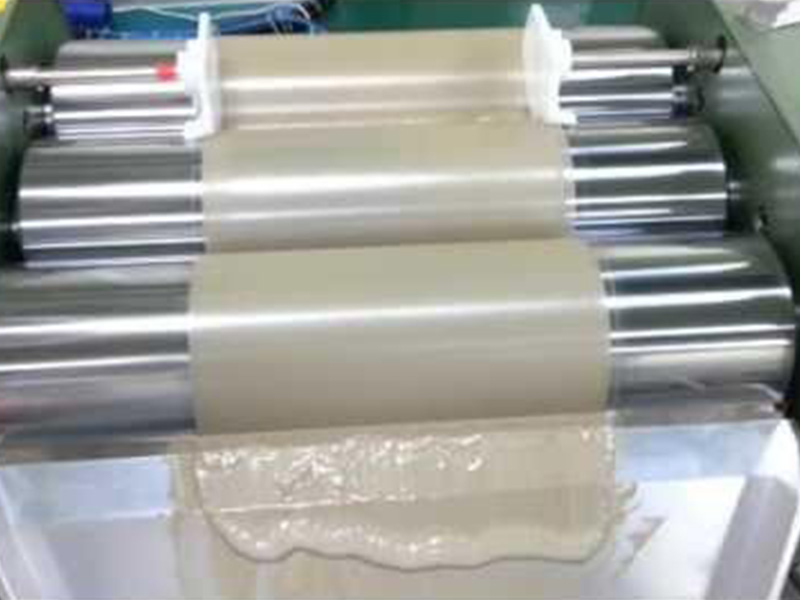

4.Working principle: Through the Three Level surface mutual extrusion and different rotation speed to reach the required grinding fineness;
5.Remark: roller length& hardness of the roller can be adjusted according to client’s requirement.
6.Material: Alloy ( roller ) / Carbon steel (machine body)
Technical specification list of Triple roller Mill
SM series triple roller miller: | |||||||
Model | 65 | 120 | 160 | 260 | 315 | 405 | |
Roller diameter(mm) | 65 | 120 | 160 | 260 | 315 | 405 | |
Roller working face Length(mm) | 140 | 280 | 320 | 620 | 760 | 810 | |
Rotation speed (Fast,middle,slow) | 1:2.63:7.1 | 1:3.13:9.77 | 1:206:5 | 1:2.5:6.25 | 1:2.87:8.1 | 1:3.14:9.77 | |
Roller slow speed | 30 | 23 | 35 | 25 | 17.5 | 14.39 | |
Roller middle speed | 79 | 72 | 72 | 63 | 50 | 44.39 | |
Roller fast speed | 210 | 225 | 175 | 157 | 142 | 136 | |
Motor type: | uniphase | Y90L-6 | Y132S-8 | Y160L-8 | Y180L-8 | Y200L-8 | |
Motor power(Kw) | 0.55 | 1.1 | 2.2 | 7.5 | 11 | 15 | |
Motor rotation speed (r/min) | 1400 | 910 | 710 | 720 | 730 | 730 | |
Diamension | L(mm) | 400 | 800 | 780 | 1330 | 1560 | 1700 |
W(mm) | 450 | 700 | 840 | 1300 | 550 | 1860 | |
H(mm) | 430 | 700 | 820 | 1120 | 1200 | 1400 | |
Weight (Kg) | 80 | 320 | 500 | 1800 | 2580 | 4200 |

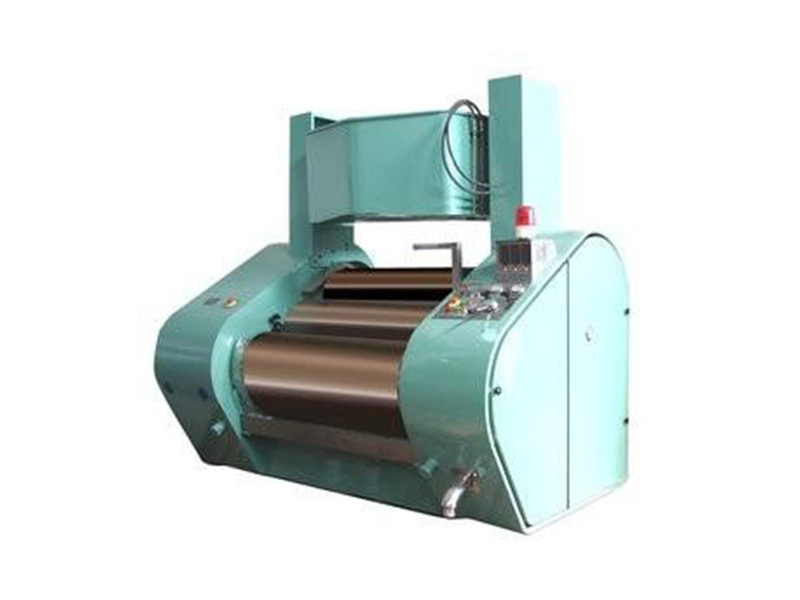

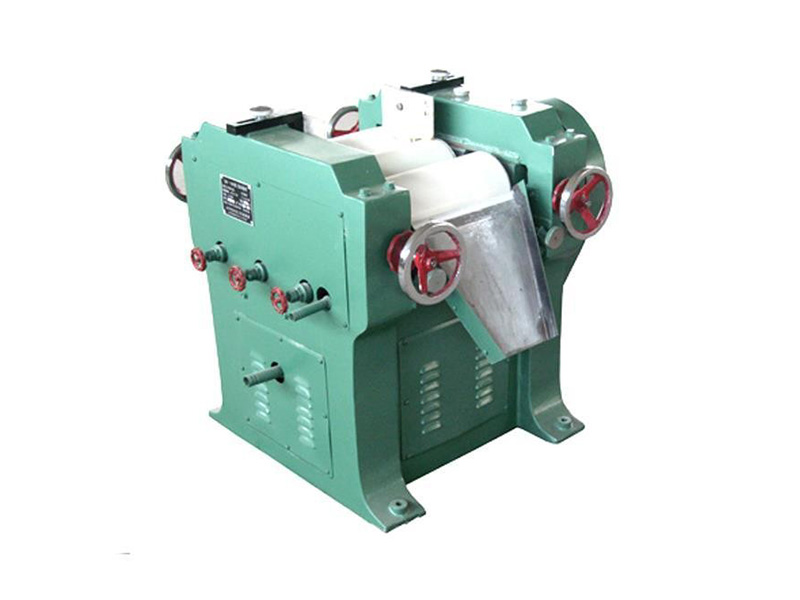

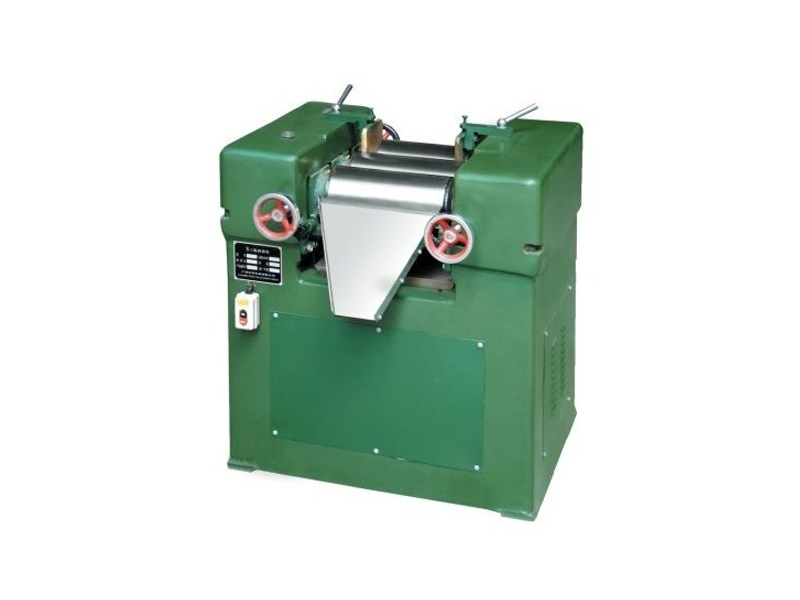

Ceramic three-roller grinder | Lab Model 65 three roller grinder | Hydraulic three roller grinder |
