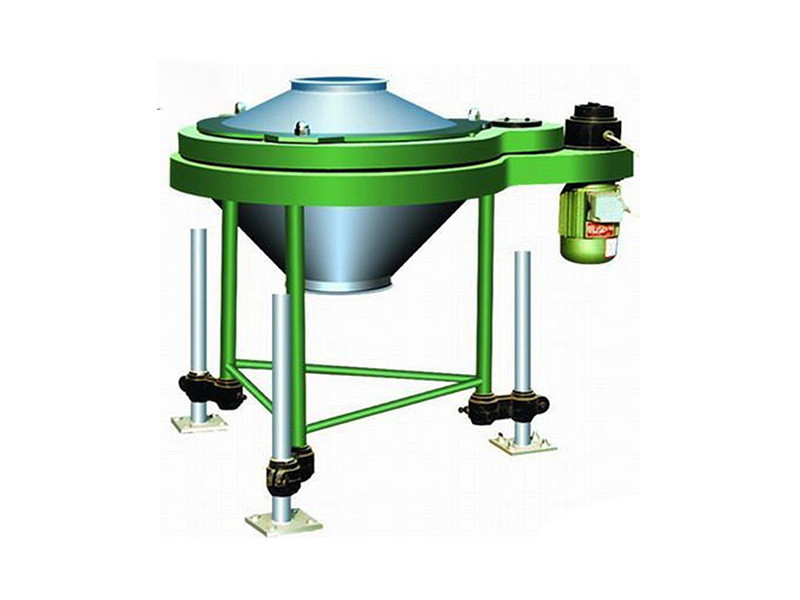

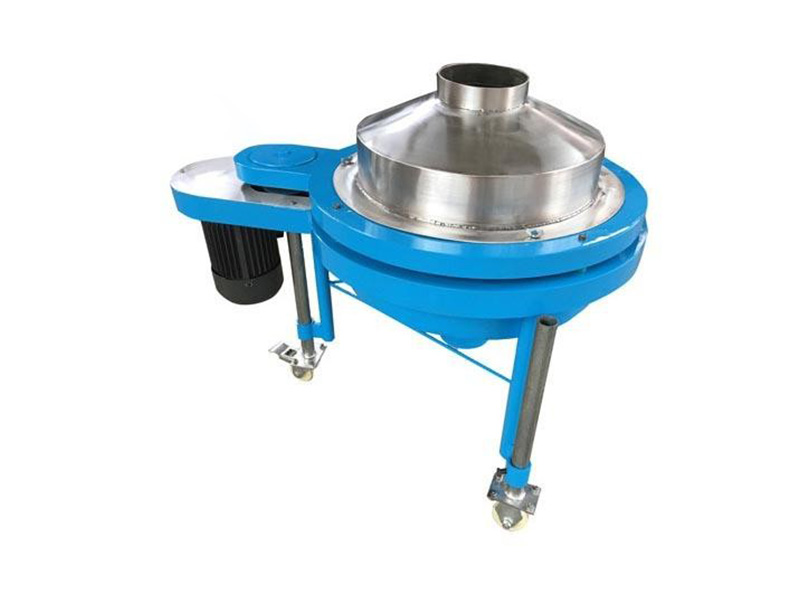

Introduction of Stainless steel rotary vibration screen / Vibrating sieve for fertilizer
1. This machine can be used for screening, powder, particles, liquid.
2. The screening size range from 2mesh to 200mesh.
3. Various model for option according to capacity requirement.
4. Automatic discharge of impurities, coarse materials, continuous operation.
5. Whole sealing structure to prevent dust pollution, liquid leakage, and material left in the machine.
6. Small noise, light weight, easy installation and maintenance.
Application of Stainless steel rotary vibration screen / Vibrating sieve for fertilizer
This machine is suitable for many powder, tablets, liquid screening and filtration industry.
Widely used in fertilizer, medicine, and powder coatings, paints, cosmetics, oils, resin, ceramics slurry, magnetic powders, polishing powder, juices, beverages, sugar, salt, starch, wheat flour, rice flour, carbon, graphite etc.
Working Principle:
Through the elastic soft actuator, drive the unique oscillator to produce the vibration exciting force, make the sieve vibrating and segragate the material. Adjust the space angle of the heavy punch on the up and down. Effectively change the movement track of the material, extend or shorten the retention period of material on the screen to realize the ideal screening effect.
Technical parameter:
Type | 450 | 600 | 800 | 1000 | ||||||||
Layer | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 |
Motor Power(w) | 120 | 120 | 150 | 180 | 180 | 300 | 300 | 300 | 400 | 300 | 300 | 400 |
Sieve Diameter(mm) | Φ500 | Φ650 | Φ850 | Φ1020 | ||||||||
Sieve Mesh Fineness | Could be changed | |||||||||||
Overall Height(mm) | 710 | 930 | 940 | 710 | 830 | 940 | 740 | 860 | 970 | 785 | 905 | 1025 |
FSZ multi-layer circular vibrating sieve | GS Liquid vibrating screen | GS Dry powder vibrating screen |
